Client work

Fasfox built a web and mobile app for Valgo that digitizes soil gas extraction monitoring, previously done on paper

Valgo, a construction and environmental company, specializes in the sustainable redevelopment of brownfields and industrial sites, bringing formerly polluted land back to life. One of its specialties is soil remediation using techniques such as venting, an essential technique for turning sites such as former chemical plants into safe, reusable spaces.

Monitoring these operations used to rely on manual readings that were slow to process and hard to use. Fasfox developed a digital tool that makes soil remediation monitoring more accurate and transparent.

Mission

Mission

Valgo specializes in managing polluted sites and soils. It operates mainly in decontamination (asbestos and lead removal), soil and groundwater remediation, and the redevelopment and enhancement of industrial land.

To digitize its venting activity, previously recorded on paper and then copied into an Excel file, Valgo commissioned Fasfox to design an app available in web and mobile versions. It was ultimately to provide the following capabilities:

  • Creating a venting project based on predefined parameters,
  • Setting up clear and complete field monitoring,
  • Collecting large volumes of data on a set schedule or on an ad hoc basis,
  • Viewing site data and archives,
  • Interpreting and processing data,
  • Offline mode for entering measurements in remote areas, with synchronization once the connection is restored,
  • A dashboard connected to Power BI so that the project manager and the client can view and analyze remediation results in real time,
  • Cross-analysis of data to study how the site evolves.

Challenges

Monitoring venting measurements was a manual process at Valgo. Field teams recorded data on paper, then transcribed it into Excel spreadsheets. This double handling took several hours and carried a high risk of data entry errors, undermining the accuracy and efficiency of monitoring.

To pursue its digital transition and optimize its operations, Valgo asked Fasfox to develop a data collection and processing solution specific to in-situ venting sites. The growing number of these sites and the teams’ wish to standardize field data collection drove this decision. The main objective was to create a tool usable on both tablets and PCs, fully digitizing the venting activity and eliminating the inefficiencies and error risks of the previous manual process.

Venting is part of Valgo’s overall strategy for soil remediation and the treatment of contaminated sites. It is a process used to manage and remove volatile organic compounds (VOCs) and other gaseous contaminants found in the unsaturated zone of the soil, above the water table.

Venting is used, for example, when converting a chemical plant that has ceased operations and whose soil was polluted by chemical discharges while it was running. Venting cleans soil by extracting the polluted air it contains. Boreholes several meters deep are drilled across the polluted area, and large pumps extract the polluted air that rises through them. This air is cleaned with an activated carbon filter. At regular intervals (weekly, for example), measurements are taken at each borehole to check that the air coming from the soil is becoming less and less polluted.

Venting monitoring is therefore a process of continuous surveillance and assessment while venting is used to remediate soil or control contaminated gas emissions. It helps ensure that venting is effective, that workers are safe and that environmental standards are met.

Solutions

Solutions

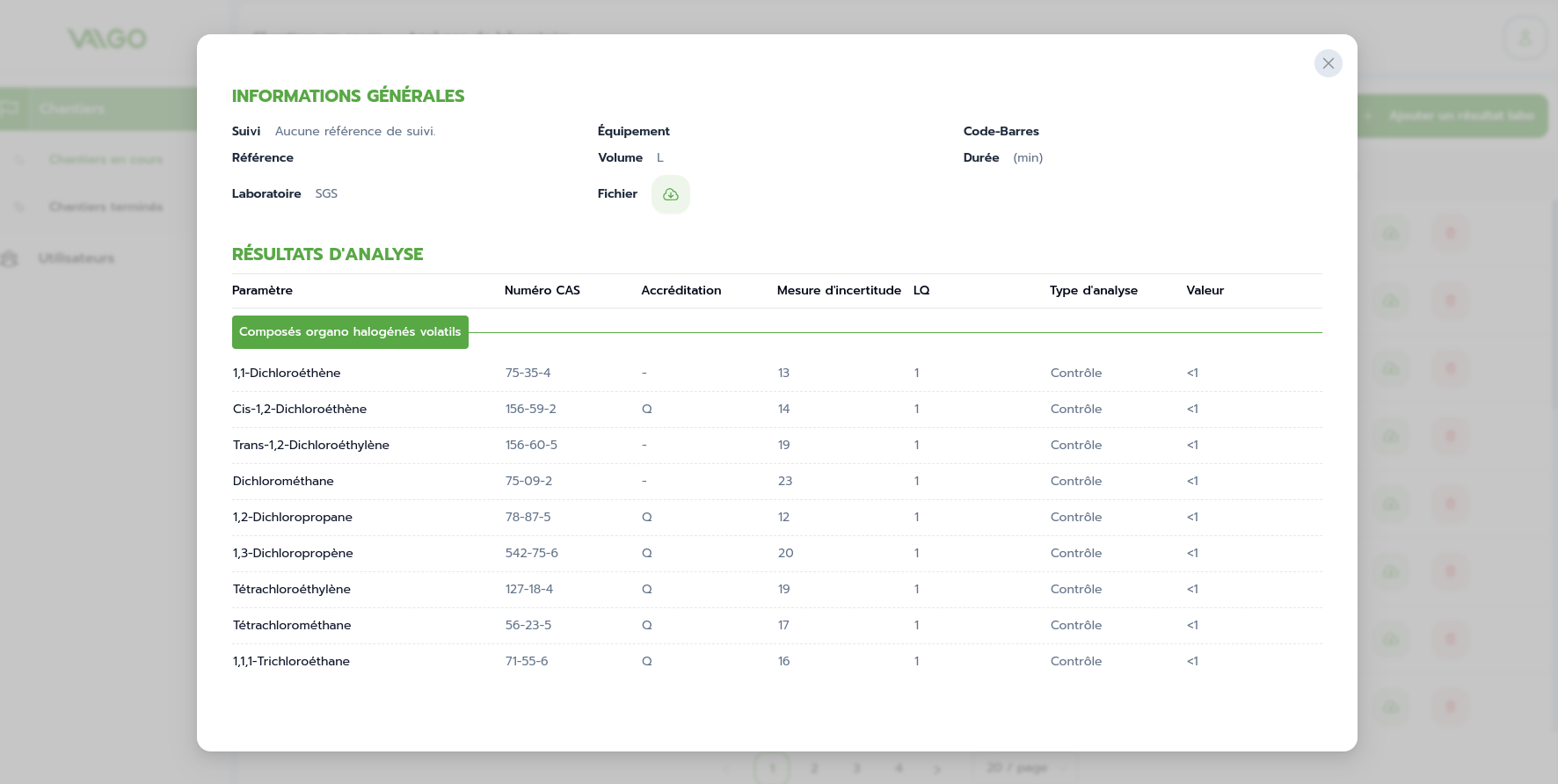

The app, named Fuji, comes in two versions: web and mobile. The web version is reserved for project managers and clients. The mobile version is available to site operators.

Through the dashboard, the web version provides the following capabilities:

  • Project managers: they can configure a venting site and monitor it in real time. This requires key information such as treatment units, structures, filters, measurements to be taken, maps, graphs, tables, text to display, permission groups, venting measurements, lab analyses, etc.
  • Clients: they can access information about the work they requested and follow its progress in real time to make sure it is carried out as expected.

The mobile app is designed for tablets. It provides the following capabilities:

  • Operators: they can collect data and make it available for the project manager to analyze. The mobile app contains detailed information about Valgo’s venting campaigns and the data recorded during them.

Technical specifications

The app developed by Fasfox lets Valgo create and configure each site, and includes tools for data management, analysis and visualization of results. An overview of its technical specifications:

Database: PostgreSQL

Data management and storage rely on PostgreSQL, an open-source relational database known for its robustness, reliability and performance.

Web dashboard

The app’s interface is built with React and TypeScript. The server side relies on Django and Python.

Data visualization with Power BI

The Power BI integration produces dynamic tables and charts. These custom dashboards help project managers and clients track site progress in real time.

Mobile version

The mobile version is an adaptation of the web version, built with React Native. Its interface, designed to feel close to working on paper, makes it easy for operators to collect and enter data on site. Offline mode allows the app to be used without an internet connection: no mobile data or Wi-Fi is needed to enter and view data on site.

Results and benefits

Results and benefits

Besides digitizing Valgo’s venting activity, the Fuji app has led to the following results.

Results

  • Less paper

Data recorded on site used to be written on paper before being transferred to Excel files. With a digital solution, this step disappears, reducing paper use in the venting activity accordingly.

  • Simpler site monitoring

Project managers, operators and clients now share a common tool that brings together the information each of them needs according to their role, with access to the progress of the process. Project managers can analyze the data collected by operators and make decisions. Clients can view the information and reports that concern them in the same tool.

  • A consistent monitoring method nationwide

With the Fuji app, Valgo’s venting monitoring follows the same process throughout France. Every project manager, wherever they are, can configure a site, view and analyze the data collected by operators, and draw the conclusions needed to update the client on progress.

  • Visual outputs and site monitoring tool

Data analysis through Power BI provides visualizations as curves and graphs, improving the venting monitoring experience for app users. The tool is praised internally at Valgo for its simplicity and analytical power.

  • Preserving and improving data quality (know-how, lessons learned, etc.)

Thanks to the Fuji app, Valgo now has a documented, digitized process for its venting monitoring. In the future, this will help optimize the activity and tailor each action to client requests, and opens up the possibility of extending the app to other remediation techniques the company uses besides venting.

Benefits

  • Time savings: eliminating the manual copying of data has reduced time-consuming administrative tasks. Operators can focus on higher-value work.
  • Fewer errors: entering data directly on site in the mobile app, combined with its automatic centralization in the web dashboard, reduces the risk of transcription and handling errors.
  • Accuracy and traceability: digital management of air sampling and lab analyses improves monitoring accuracy and the traceability of operations.
  • Decision-making: custom dashboards and real-time data visualizations give project managers and clients actionable information for tracking performance.
  • Operational efficiency: offline work and multi-device compatibility let operators carry out their tasks without interruption, even in areas without network coverage.
  • Smoother exchanges: simpler data transfer makes the transmission and processing of monitoring data smoother.
